- Universal single LNB, HDTV-/DVB-S2 compatible, connection for one satellite receiver
- The KATHREIN Euroline universal feed systems are suitable for satellite reception systems with a 40 mm LNB mount
- 3 years warranty according to KATHREIN warranty conditions

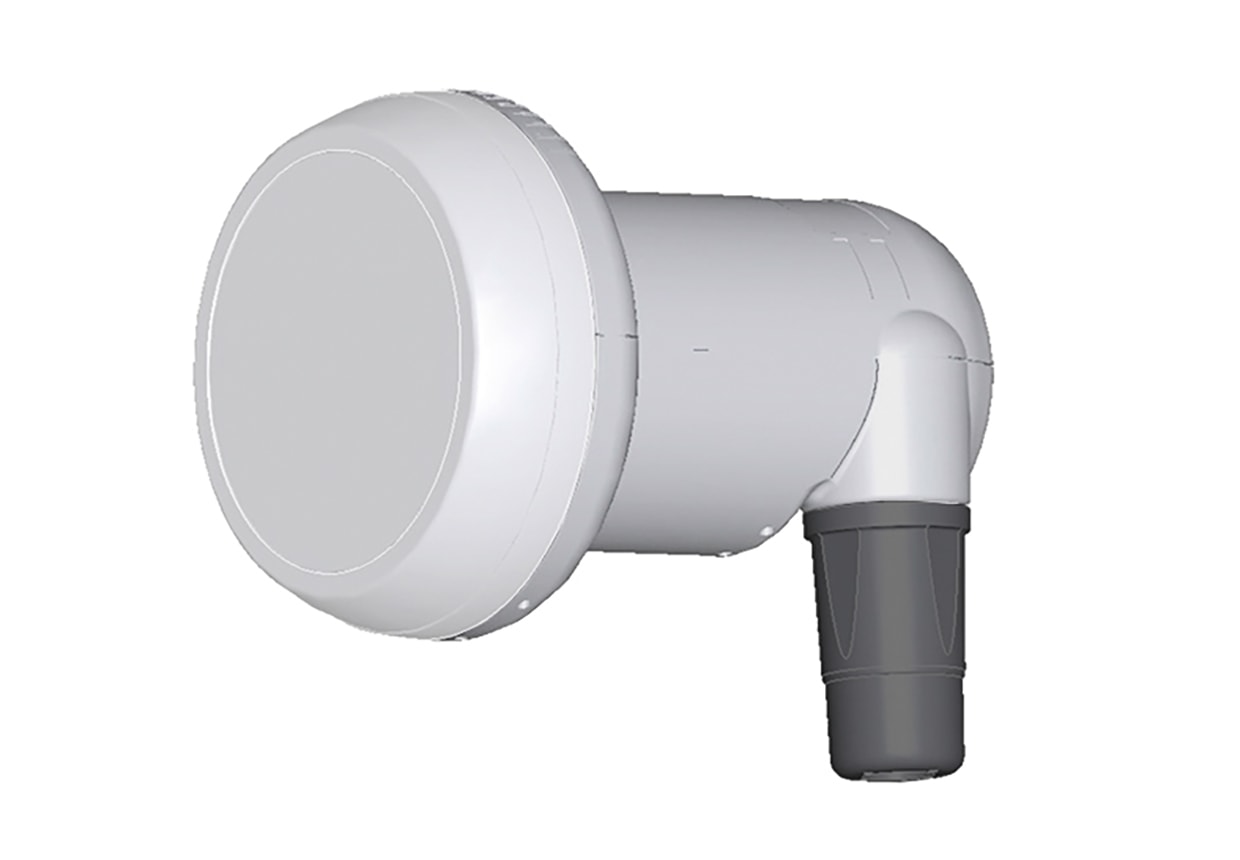

KEL 411
Universal single feed system
| Type: | KEL 411 |
| Order no: | 20110027 |
| Input frequency: | 10.70 – 11.70 GHz | 11.70 – 12.75 GHz |
| Reinforcement: | 60 dB |
| Output frequency: | 950 – 1950 MHz | 1100 – 2150 MHz |
| Oscillator frequency (L.O.): | 9.75 GHz | 10.60 GHz |
| Type. Power consumption: | 165 mA |
| Supply voltage: | 11.5-14 (vert.)/16-19 (horiz.) V |
| Output: | 1 x F-Connector |
| Control signals: | 0 (low band)/22 (high band) kHz |
| Dimension feed receptacle (Ø): | 40 mm |
| Dimensions with cap: | 80 x 61 x 76 mm |
| Packaging unit/weight: | 1 (10)/0.15 pc/kg |
