- Reflector made of aluminum, powder coated
- Back part made of galvanized sheet steel
- Foldable aluminum LNB support arm
- Mast and locking clamps made of galvanized sheet steel (completely pre-assembled)
- Screws and nuts in stainless steel version
KEA 1000
SAT antenna ∅ 100 cm
- Offset parabolic antenna 100 cm
- Aluminum reflector
- Metal back, pole clamp: 30-90 mm
- Die cast aluminum food holder 40 mm
- Foldable support arm
| Type: | KEA 1000 |
| Reflector diameter: | 970 x 1040 mm |
| Reception Area: | 10.70 – 12.75 GHz |
| Antenna gain at 11.7 GHz: | 39.7 dBi |
| Wind load ¹): | 962 N |
| Max. permissible wind speed: | 180 km/h |
| Elevation setting range: | 0 – 80 ° |
| LNB recording: | 40 mm |
| Half-width: | 1.7 ° |
| Clamping range of the pole clamp: | 30 – 90 mm |
| Weight: | 7.4 kg |
¹) At a dynamic pressure of 800 N/m² according to EN 60728-11
- KEA 1000 - Product data sheet (Version: get_version()->get_version_number() )?> - Größe: 146.01 KB) (146 downloads)
- KEA 1000 - Produktdatenblatt (Version: get_version()->get_version_number() )?> - Größe: 145.06 KB) (205 downloads)
- KEA 650 / 750 / 850 / 1000 - Bedienungsanleitung | User Manual (Version: get_version()->get_version_number() )?> - Größe: 2.08 MB) (1363 downloads)

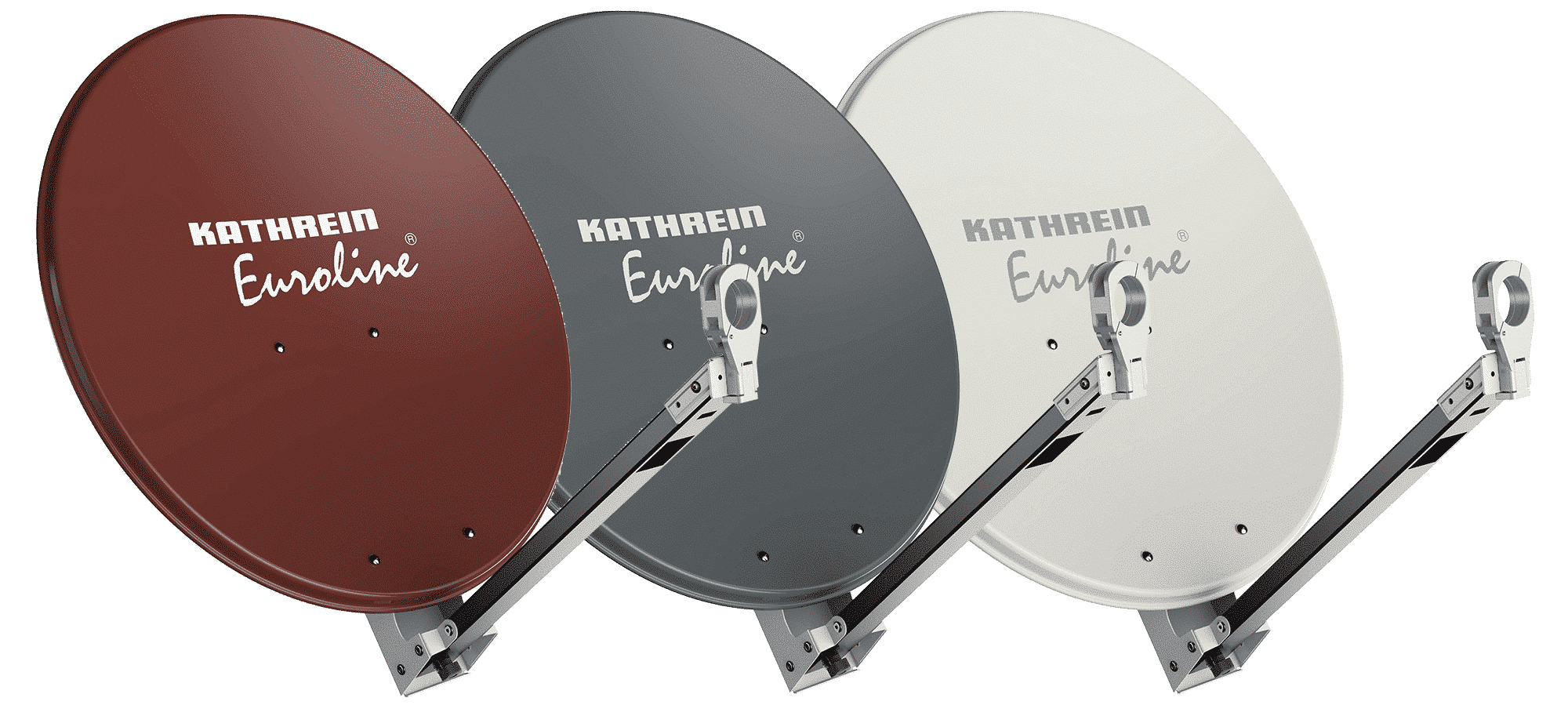

| Farbe | Red, Gray, White |
|---|
